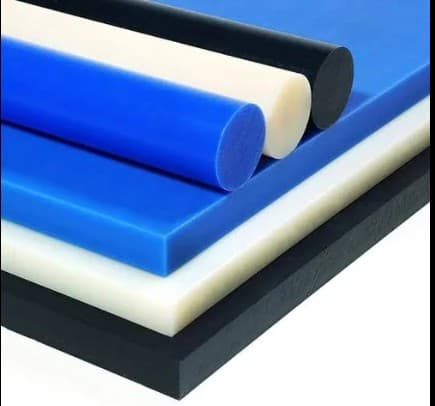

Nylon PA6 / PA66 - PI (Polyimide)
Exceptional thermal stability with outstanding mechanical properties — maintains performance up to 260°C continuously.
About Nylon PA6 / PA66 - PI (Polyimide)
Nylon - Polyimide (PI) combines outstanding thermal stability with excellent mechanical properties. Operating continuously at 260°C and intermittently at 300°C+, PI maintains its properties where most other plastics fail. It exhibits excellent creep resistance, outstanding dielectric properties, and low outgassing — making it ideal for vacuum and high-purity environments. PI is available in unfilled, glass-filled, and graphite/MoS₂-filled grades for enhanced tribological performance.
Material Usage
Bearing retainer rings
Bushings and thrust washers
Seals and valve seats
Electrical and thermal insulators
Flexible circuit substrates
Compressor components
Cryogenic service parts
Material Characteristics
Maximum continuous temperature: 260°C (300°C intermittent)
Excellent creep resistance under load
Outstanding dielectric properties
Low thermal coefficient of expansion
Low outgassing for vacuum applications
Available in self-lubricating grades
Standard Sizes
SHEET
| Thickness / Size |
|---|
| 0.005" – 1.0" thickness |
| Custom thicknesses available |
ROD
| Diameter / Size |
|---|
| 0.25" – 4.0" diameter |
| Tubes and custom shapes available |
TUBE
| OD / Wall / Size |
|---|
| 0.375" OD x 0.25" ID x 12" length |
| 0.75" OD x 0.5" ID x 12" length |
| 1.0" OD x 0.625" ID x 12" length |
| 1.5" OD x 1.125" ID x 12" length |
| Custom dimensions available |
OTHER
| Form / Size |
|---|
| Custom wound shapes available on request |
