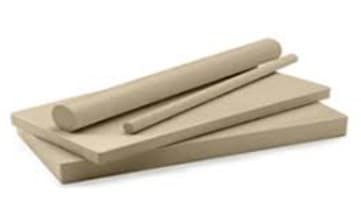

PEEK (Polyether Ether Ketone)

High-performance semi-crystalline thermoplastic known for exceptional strength, heat resistance, chemical resistance, and dimensional stability up to 250°C. We also proved PEEK machined parts as per drawing.

About PEEK (Polyether Ether Ketone)

PEEK (Polyether ether ketone) is a semi-crystalline, organic thermoplastic polymer with excellent mechanical and chemical resistance properties maintained at high temperatures. PEEK is one of the most widely used high-performance engineering thermoplastics across aerospace, medical, semiconductor, and oil & gas industries. PEEK maintains excellent mechanical properties over a wide temperature range, is resistant to almost all organic and inorganic chemicals, and is available in standard, glass-filled, carbon-filled. Types of PEEK available in Natural and Black Color -Glass Filled -Carbon Filled -Bearing Grade

Material Usage

Aerospace structural components
Medical implants and surgical instruments
Semiconductor equipment components
Oil & gas downhole components
Automotive under-hood parts
Electrical connectors and insulators
Pump components and valve seats
Bushings, seals , manifolds

Material Characteristics

Maximum continuous temperature: 250°C

Chemical resistant to most solvents, hydraulic fluids, and fuels

FDA-compliant & Medical grades available

Excellent fatigue and wear resistance , Stable mechanical properties at elevated temperatures / continuous high temp use

Semi-crystalline structure for high strength

Low moisture absorption

UL 94 V-0 flammability rating

Very low toxic gases & Smoke emissions when exposed to flame (Self Extinguishing)

PEEK is also a strong electrical insulator

Standard Sizes

SHEET

Thickness / Size
0.25" – 4.0" thickness
Standard sheet size: We can cut to custom Length requirements
(3 " x 3 " - 48 " x 48 ")

ROD

Diameter / Size
0.125" – 6.0" diameter
Tubes and custom profiles available

TUBE

OD / Wall / Size
0.25" OD x 0.125" ID x 12" length
0.5" OD x 0.313" ID x 12" length
1.0" OD x 0.75" ID x 12" length
1.5" OD x 1.25" ID x 12" length
2.0" OD x 1.625" ID x 12" length
Custom wall thickness available

OTHER

Form / Size
Strip: 0.5" – 3.0" wide x 0.062" – 0.5" thick
Monofilament wire: 0.01" – 0.1" diameter

Request a Quote for PEEK (Polyether Ether Ketone)
